Timer

Timer

Overview

This article outlines a detailed framework and timer-based services. Framework services are essential, foundational components within the OneEnterprise platform that support and oversee the execution, communication, and lifecycle of all other services. They provide the infrastructure and runtime environment that allow other modules, such as timer-based services, APIs, or integration flows, to operate efficiently and reliably.

Timer-based services are automated background processes that run at set time intervals or on schedules. They are triggered by time rather than user input or external events. These services are frequently used to perform recurring tasks like scheduled data transfers and monitoring activities.

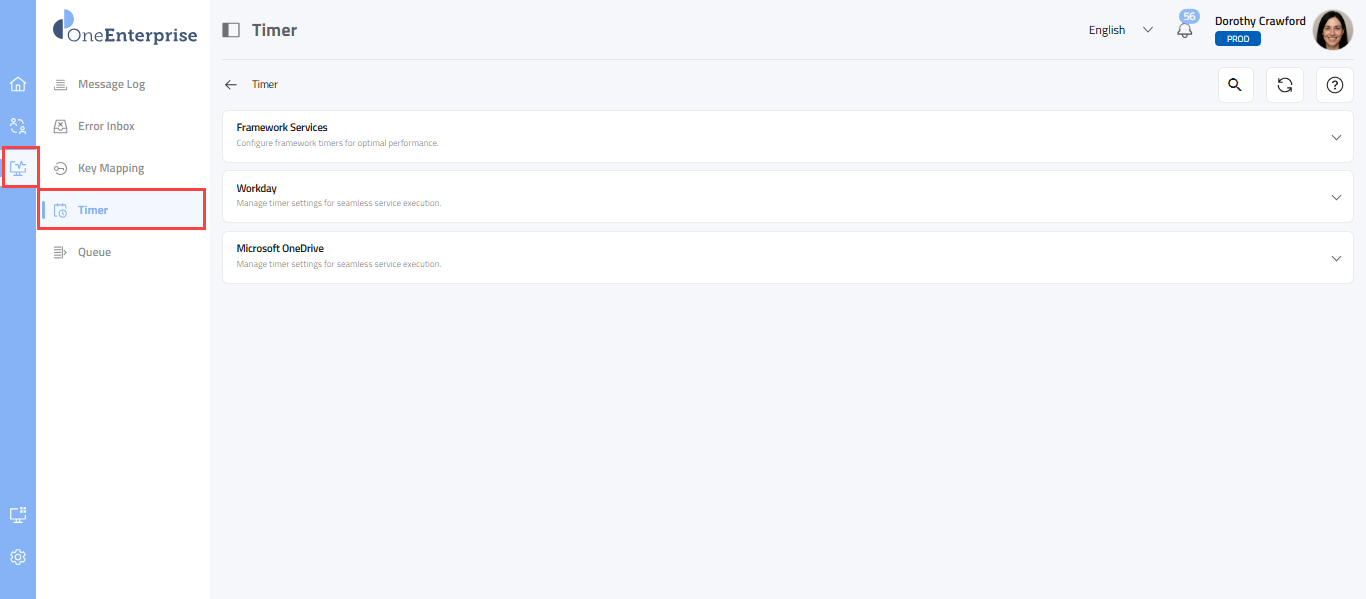

Navigate to the Timer

Navigation: Monitoring> Timer
  1. Click on the Monitoring group menu, then select the Timer.

View the List of Services

  1. The screen shows a list of services running in the application.
  2. Two types of services are displayed: Framework Services and System Connectors' Services.
  3. The top band always shows the framework services. When clicked, the band expands to reveal all the running services.
  4. The bands below the framework services show system-connector-related services. Each connector has its own band. Clicking a band expands it to display all the running services.

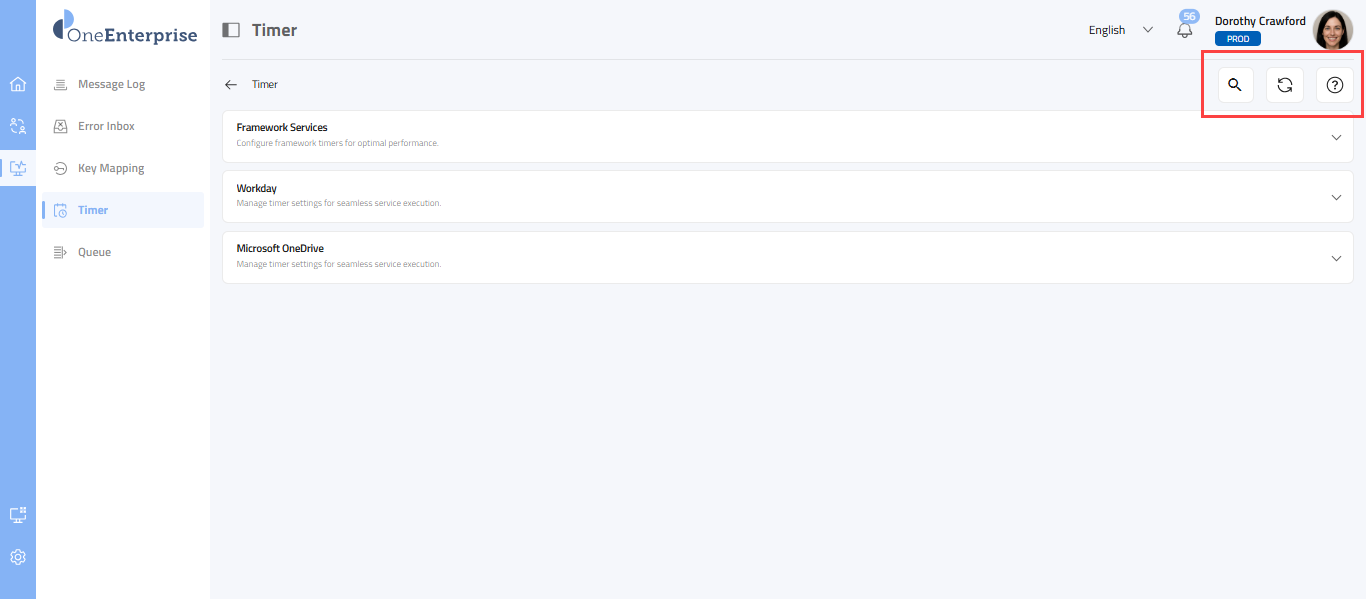

Action Area

  1. The action area provides the following action items:
    1. Search: This allows you to find the connector name by typing in the field.
    2. Refresh: This updates all the services and shows the current status.
    3. Help: This provides help articles related to the screen.

Framework Services

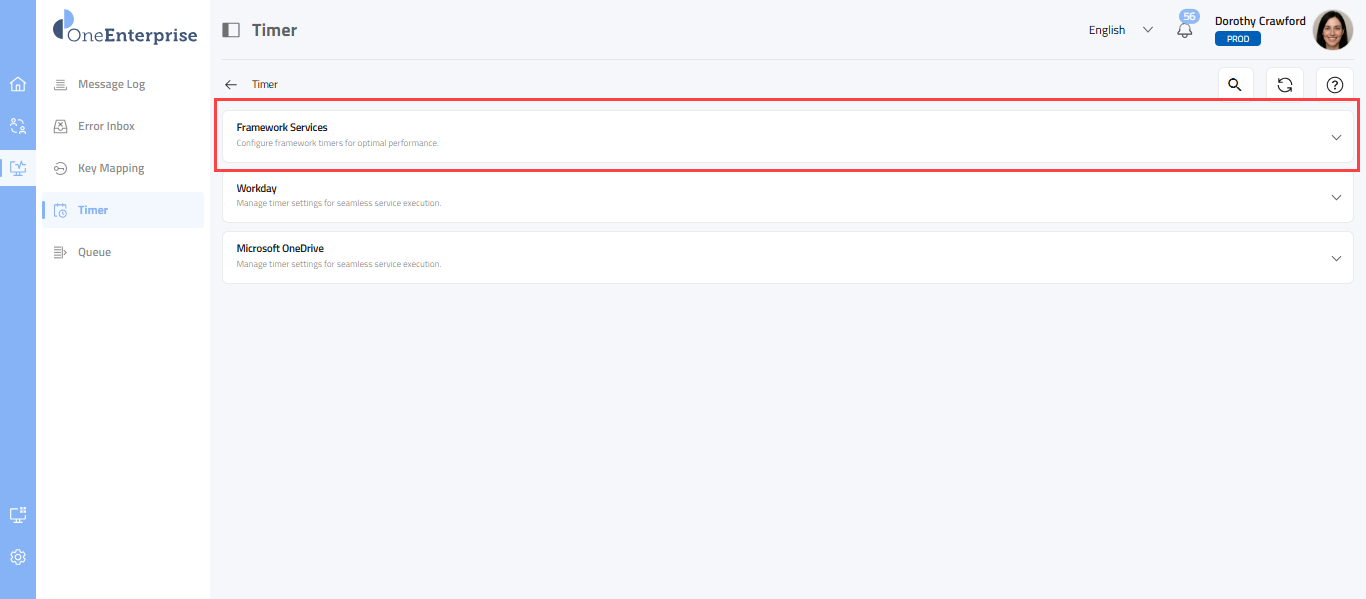

  1. To view the Framework services, click on the band.

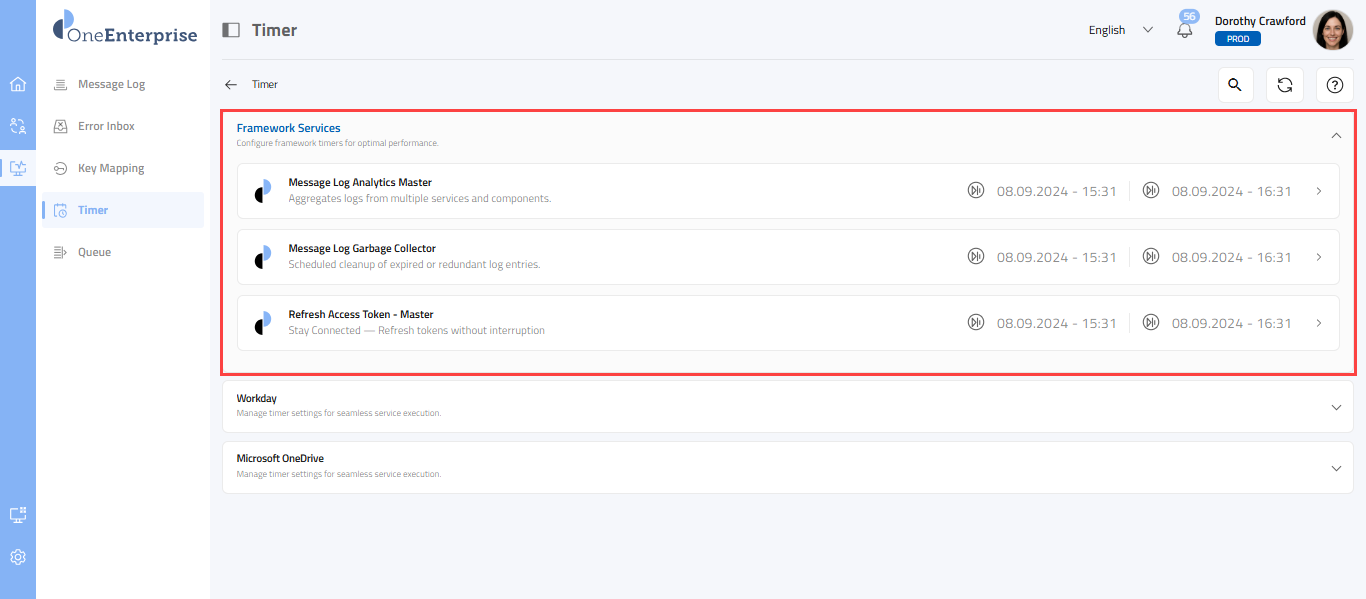

  1. Once the section is expanded, the list of running services appears.
  2. Each service is displayed on a separate band, which provides the following information:
    1. The service name.
    2. The date and time of its last run, and the date and time of its next scheduled run.
  3. Click on any of the bands to view its details.







System Connector Services
