Edit XSLT Stylesheet

Edit XSLT Stylesheet

Overview

This section outlines the steps for editing the XSLT Stylesheet.

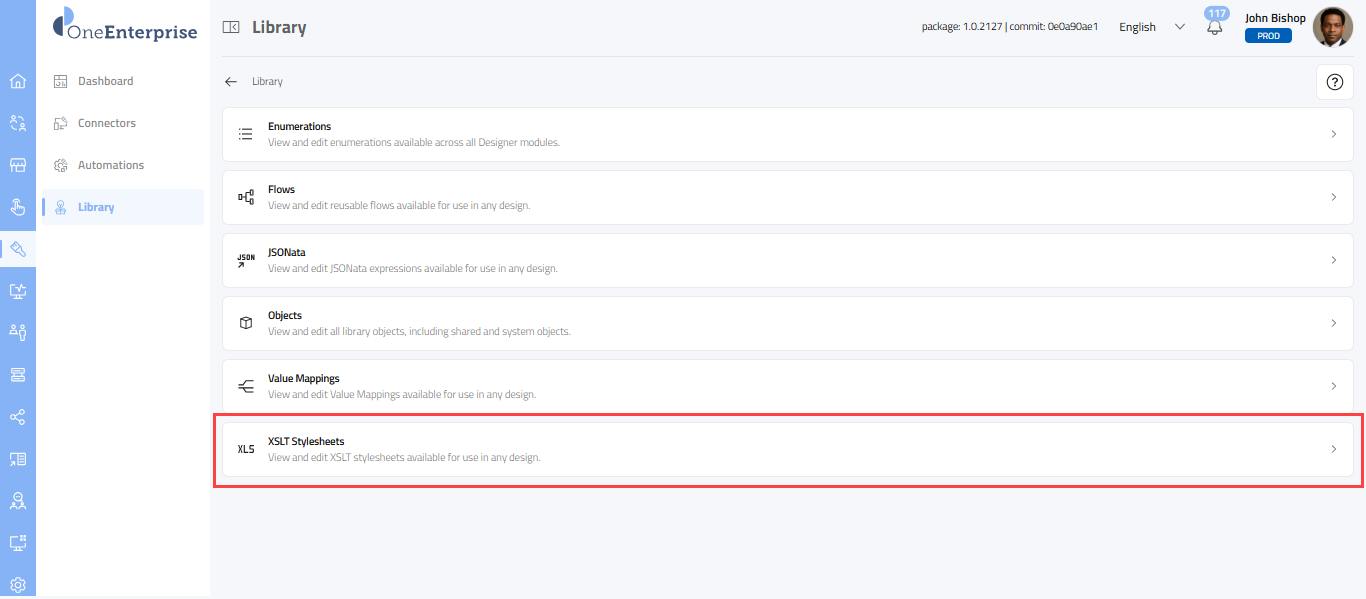

  1. Click on the XSLT Stylesheets band.


Start Edit Mode

  1. To edit XSLT details, click on any of the bands.
  2. The screen will open in edit mode, allowing you to modify the following details:
    1. XSLT Details
    2. XSLT Stylesheet

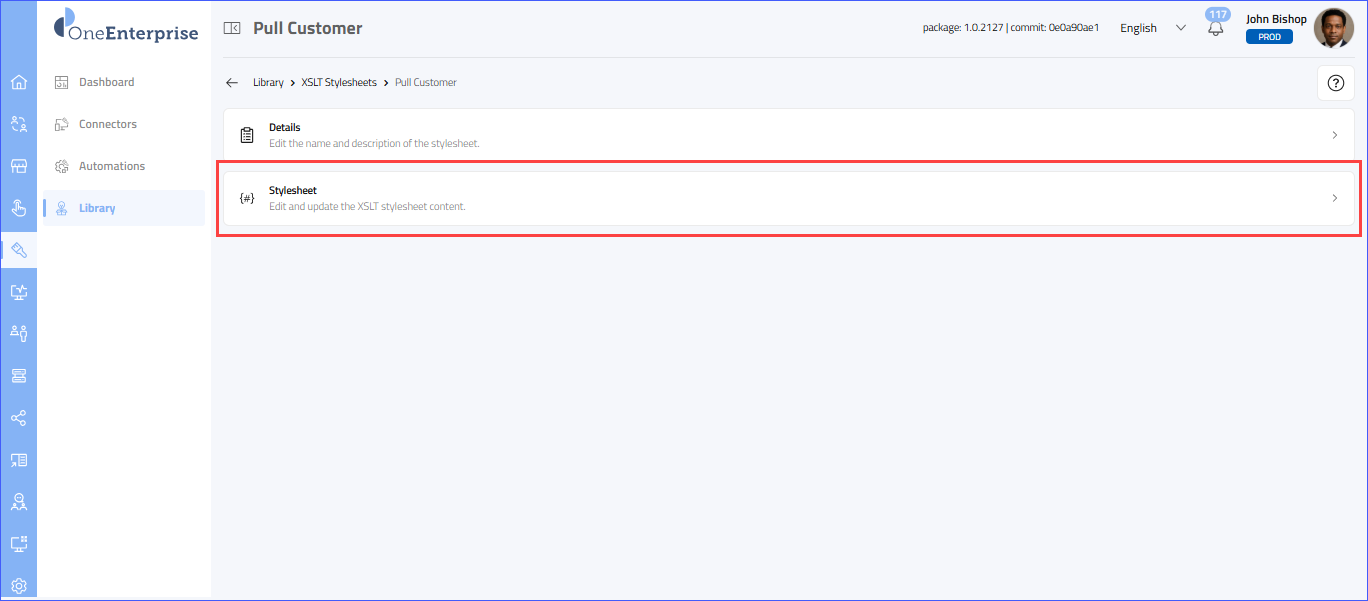

  3. Click the Stylesheet band to start modifying the XSLT Stylesheet.

  1. On the Stylesheet screen, you can modify only the stylesheet.
  2. Please note that OneEnterprise provides a basic structure of the XML stylesheet.

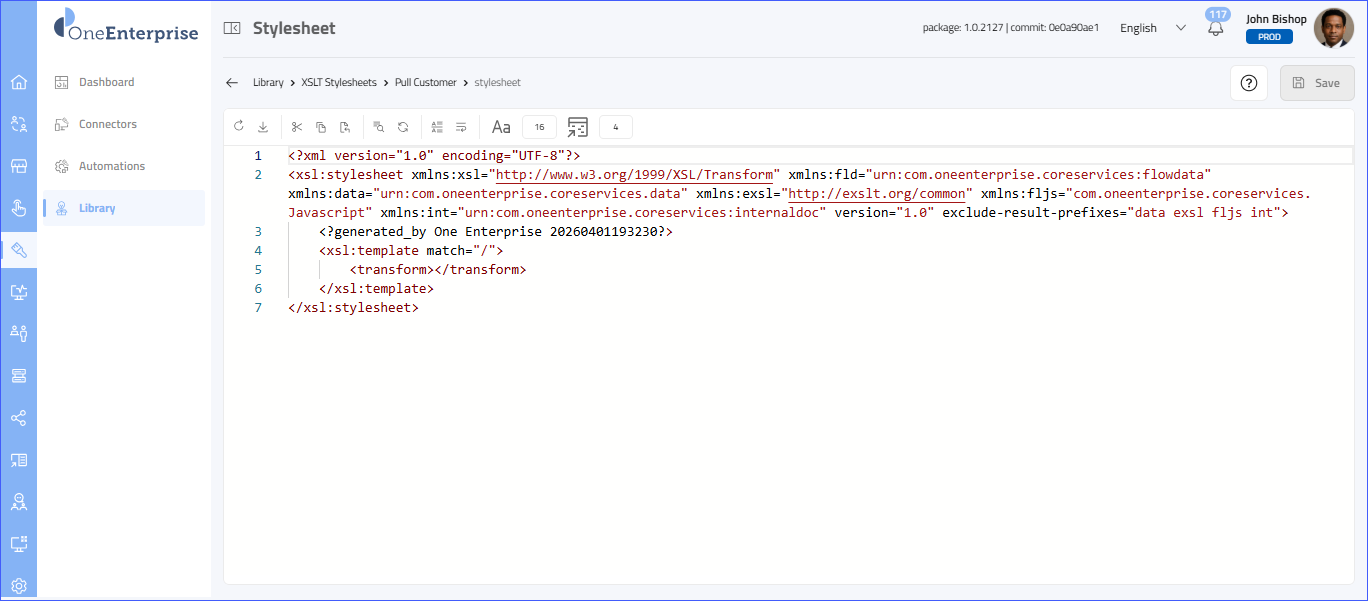

  3. Edit the XSLT directly in the code area. Line numbers appear in the gutter on the left.
  4. On the Stylesheet editor screen, use the toolbar to make changes to the XSLT code:
    1. Refresh — reload the stylesheet from the server and discard unsaved changes.
    2. Download — download the current XSLT as a file.
    3. Cut, Copy, Paste — standard clipboard actions on the selected text.
    4. Undo and Redo — step backward or forward through edit history.
    5. Indent and Outdent — increase or decrease the indentation of the selected lines.
    6. Font size — open the font menu and select the editor font size (default 16).
    7. Insert snippet and Format — insert a code snippet or auto-format the document.
  5. Select Save in the top-right to persist your changes.
