  1. Purpose: A Component Unit in a flow diagram represents a self-contained, reusable block of logic that performs a specific task. You can reuse it whenever needed within a larger process, much like using a pre-built piece in a puzzle.
  2. What it does:
    1. Calls another reusable component or subflow.
    2. Encapsulates a set of steps or logic into a single unit.
    3. Can be reused across multiple flows.
    4. Accepts input parameters and returns output results.
  3. How it works:
    1. Definition:
      1. A component is created separately with its own flow logic.
      2. It is designed to perform a specific task (e.g., validating data or processing a document).
    2. Invocation:
      1. The main flow calls the Component Unit.
      2. Passes required inputs (e.g., document ID, user info).
      3. Waits for the component to finish and return outputs.
    3. Benefits:
      1. Modularity: Breaks complex workflows into smaller, manageable pieces.
      2. Reusability: Common tasks can be reused without duplication.
      3. Maintainability: Easier to update one component than multiple flows.
  4. Use case:
    1. Document Workflow: A component for OCR processing.
    2. Integration: A component for API authentication.
    3. Business Logic: A component for invoice validation.

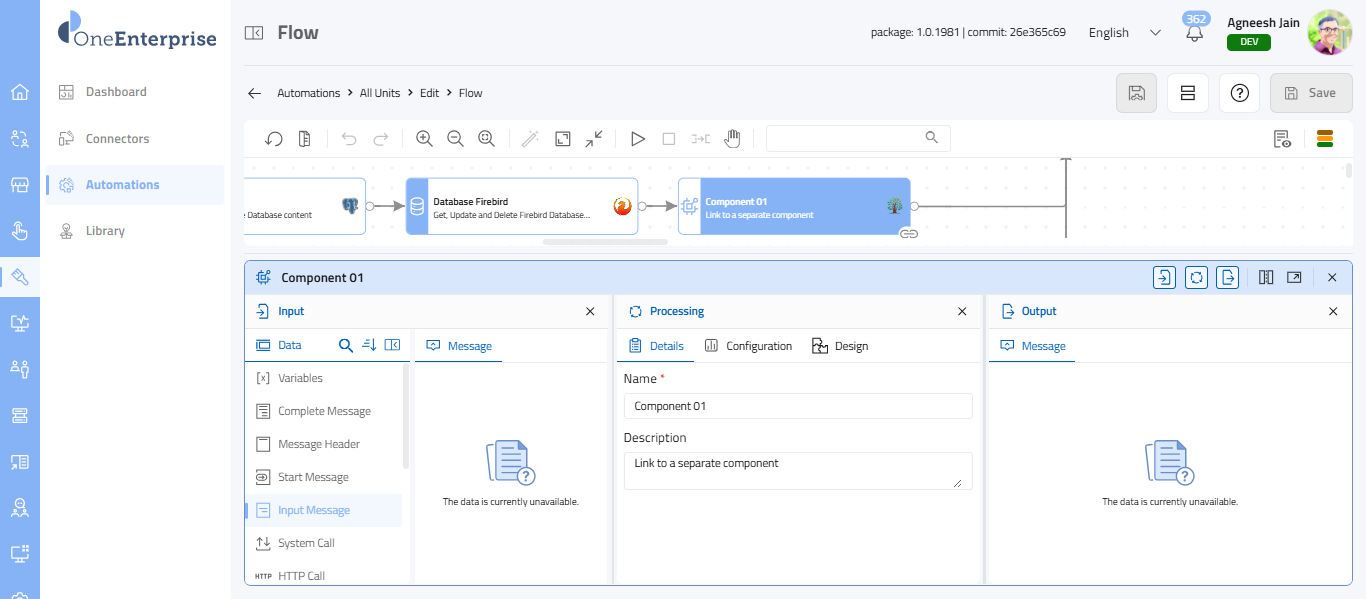

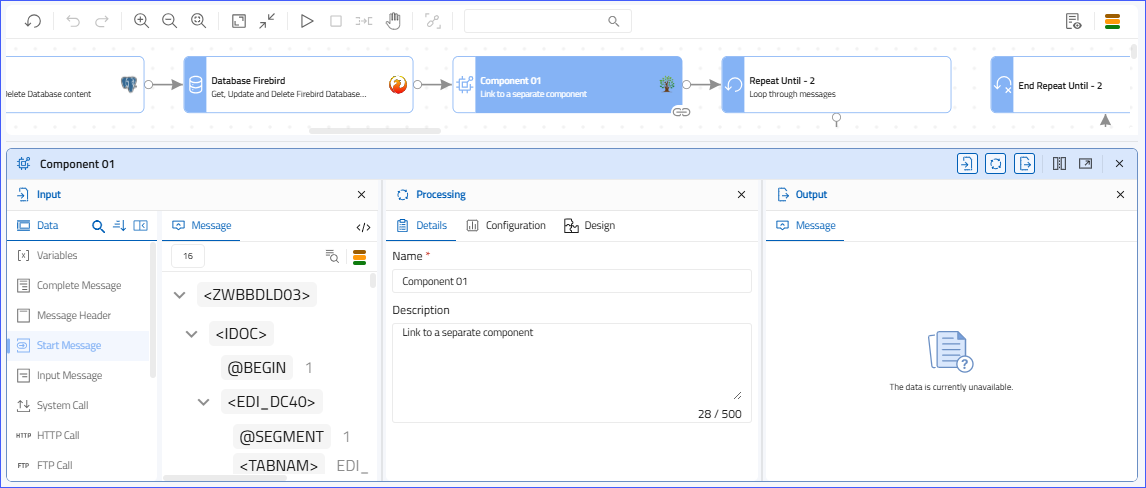

  5. Visual Representation:
